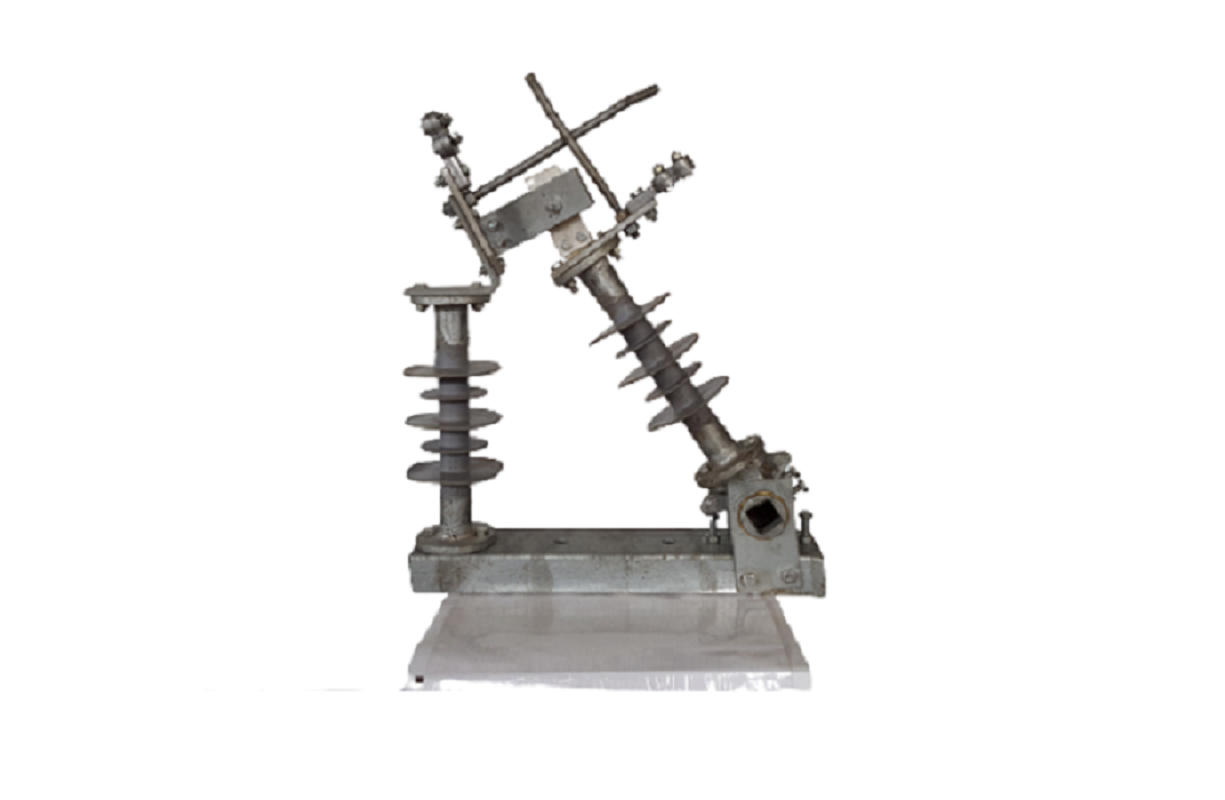

11KV AIR BREAK SWITCH WITH POLYMERIC INSULATORS


Fully Type Tested as per IS : 9920: 2002 IEC: 60265-1
Characteristics of A.B.Switch (3 Poles)
Rated Volatage : 11 KV
Rated Current : 400A
Rated Insulation Level : 28 Kvrms/ 75 Kv peak
Short-time withstand : 16 kArms for 1 Sec with current initialpeak of 40kA

22KV AIR BREAK SWITCH WITH POLYMERIC INSULATORS


Fully Type Tested as per IS : 9920: 2002 IEC: 60265-1
Characteristics of A.B.Switch (3 Poles)
Rated Volatage : 22 KV
Rated Current : 400A
Rated Insulation Level : 50 Kvrms/ 125 Kv peak
Short-time withstand : 16 kArms for 1 Sec with current initialpeak of 40kA

33KV AIR BREAK SWITCH WITH POLYMERIC INSULATORS



Fully Type Tested as per IS : 9920: 2002 IEC: 60265-1
Characteristics of A.B.Switch (3 Poles)
Rated Volatage : 33 KV
Rated Current : 400A
Rated Insulation Level :
Short-time withstand : 16 kArms for 1 Sec with current initialpeak of 40kA
